Ceiling Air Diffuser For Large Airflow

    • Ceiling Air Diffuser For Large Airflow
    • Ceiling Air Diffuser For Large Airflow
    • Ceiling Air Diffuser For Large Airflow
  • Ceiling Air Diffuser For Large Airflow

    পণ্যের বিবরণ:

    Place of Origin: Guangdong, China (Mainland)
    পরিচিতিমুলক নাম: Zhisheng
    সাক্ষ্যদান: ISO9001
    Model Number: ZS-BQ-250

    প্রদান:

    Minimum Order Quantity: 50 pieces
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 1000 pieces
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Diameter: 250 mm (10inch) Material: Aluminum Alloy
    Surface finish: Powder coated Color: RAL9016
    Type: Ball spout

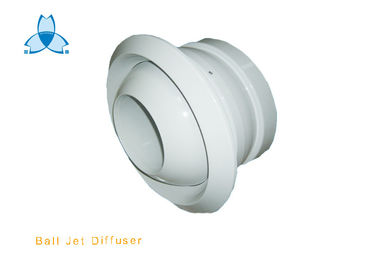

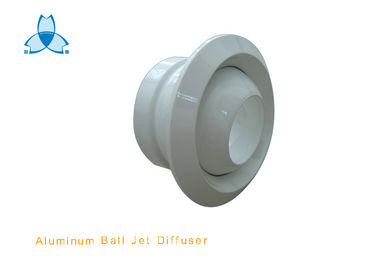

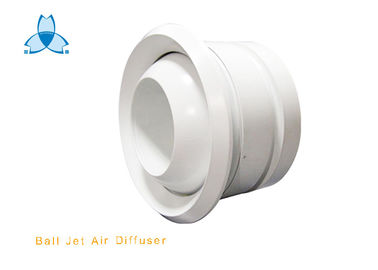

    Aluminum Ball Jet Air Diifsuer Ball Spout For Large Airflow





    Feature:



    1.Aluminum alloy material



    2.Long-distance air supply with less noise



    3.The max up or down adjustment angle of the outlet is 30 degrees



    4. The product with manual adjustment can be regulated 360 degress. Surface is with diamond

    corner, can be opened by rotating left 450 on horizontal directivity



    5.Sealed by specail seal member between sphere and exterior frame to achieve the best air tightness,

    and keep the sphere direction under high air speed.



    6. The outlets can be regulated by hand or electric devices to meet the change of the temperature.



    7. Can add sector air valve or round air valver as your requriement



    8. There is a ball spout in the exhaust hook of the outlet QP together with a draught ring and connecting pipe which can be installed in the round duct



    9. While powder-coating finish or no painting for choice or color you prefer.



    Functions:Ventilation, dispel heat



    Application:



    Mainly used in the area where the A/C outlets are far away from the people moving around,such as airport, gymnasium, theatre,museum etc.It is not proper to use ceiling outlets because they are not able to supply air uniformly to the corners and it is better to install ball spouts to supply side air.



    Drawing of Ball Jet Diffuser :



    Ceiling Air Diffuser For Large Airflow



    Size and Specification:



    Item Size ¢D1 (Neck) ¢D3 (Face) ¢D2 (outlet) ¢D4 (Inlet) L (depth) E (frame Height) Volume (m/h) Range(m)
    100 100 149 48 73 76 22 450 30
    125 125 173 62 90 95 24 600 30
    150 150 199 76 108 110 23 800 30
    200 200 265 107 152 138 27 1094 30
    250 250 310 128 195 175 26 1368 30
    315 315 378 180 240 200 30 1680 30
    400 399 468 275 330 227 31 2710 30
    450 448 523 275 375 220 32 3200 30
    500 494 583 285 430 250 35 4000 30
    630 625 700 295 550 320 22 5000 30
