Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved

সাক্ষ্যদান
চীন DONGGUAN LIHONG CLEANROOM CO., LTD সার্টিফিকেশন
চীন DONGGUAN LIHONG CLEANROOM CO., LTD সার্টিফিকেশন
ক্রেতার পর্যালোচনা
ZHISHENG company provide high quality air shower room and good sevice. Miss Rita Guo will provide the drawing and details to us to confirm at order.

—— Subramaniam Muthusamy

Miss Rita Guo is a nice person, she is very patient to explain anything which we are confused, besides, she is professional on air shower.

—— ORAI CO.LTD

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

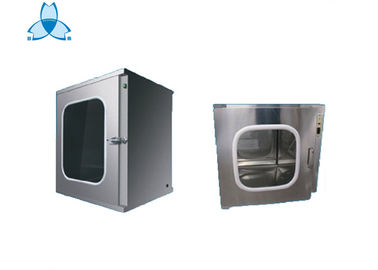

Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved

Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved
Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved

বড় ইমেজ :  Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved

পণ্যের বিবরণ:
Place of Origin: Guangdong, China (Mainland)
পরিচিতিমুলক নাম: Zhisheng
সাক্ষ্যদান: ISO9001
Model Number: ZS-CC-02
প্রদান:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 200sets per month

Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved

বিবরণ
Material: Stainless Steel Lock type: Mechanical Or Electronic Interlocked
Size: 785x660x690mm Structure: Pass Box
OEM: Available Warranty: One Year
লক্ষণীয় করা:

clean room pass thru

,

cleanroom pass through chambers



Clean Room Air Shower Pass Box With Mechanical Or Electronic Interlocked



Pass Box is designed to provide functional support of controlling ingress of particulate contamination in clean room environment as well as in other controlled environment.



Further, these pass boxes also allows materials to be efficiently transferred into controlled environment without need of personnel movement.



Finding suitability for protecting external environment from egress of contamination, these are perfectly suitable for biological safety laboratory applications.

Features :



System coming with suitable electromechanical interlock facility that makes these delivers reliable as well as maintenance free functioning​



Supporting the demands of maintaining clean room integrity through preventing both doors from being simultaneously opened



Stainless steel 304 grade based main body construction



Internal construction of also featuring stainless steel construction that makes work zone easy to clean as well as maintain



Transparent door provision also offering for clear view of internal chamber



Comes fitted with support of UV lamp for managing germicidal activities



Coming with indication of door opening and closing



Pass box constructed using mild steel powder coated, or stainless steel finish options



System made available in static & dynamic model finish



Dynamic model featuring support of HEPA filters





Standard Features



  • Clear acrylic doors
  • Vinyl bulb gasket seals for the doors
  • stainless steel for inside
  • A mechanical interlock (except for units with fire rated doors)

Optional Features

  • HEPA filters
  • Fan filter units
  • Electric interlock system
  • Support brackets
  • Electro-polished finish for stainless steel pass box
  • Double wall construction (painted and stainless steel)
  • 304 Stainless Steel door frames with 1/4" thick clear tempered glass
  • Stainless steel/spring loaded door latch
  • UV light

Application



It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.

The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.



Standar size:



Model ZS-CC1 ZS-CC2 ZS-CC3
External dimensions (W x D x H) 685x460x590 785x660x690 985x660x890
Size for working area ((W x D x H) 500x400x500 600x600x600 800x800x600
Material stainless steel
Lock type Mechanical Or Electronic Interlocked
Windows Clear Acrylic sheet



we can offer special size and requirement as per our clients.



Drawing:



Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved 0



Anti - Static Dynamic Passbox , Safety Clean Room Pass Thru CE Approved 1

Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.
