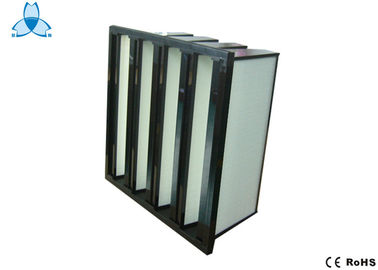

Large Dust Holding V Bank Air Filters With Fiberglass Medium Material

Large Dust Holding V Bank Air Filters With Fiberglass Medium Material

Large Dust Holding V Bank Air Filters With Fiberglass Medium Material

পণ্যের বিবরণ:

Place of Origin: Guangdong, China (Mainland)
পরিচিতিমুলক নাম: Zhisheng
সাক্ষ্যদান: ISO 9001, Rohs
Model Number: ZSGV-3600

প্রদান:

Minimum Order Quantity: 50 pieces
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500 pieces per month
এখন যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Efficiency: 95%~99.99% Porosity: @0.3μm
Size: 610x610x292mm Construction: V-Bank Filter
Medium Material: Fiberglass Separator: hot-melt beads



Standard EN7 7 9 Plastic Frame Compact v Type Hepa Air Filter





Applications:


V-type air filter uses thick mini-pleat filter elements in V patterns to increase the filtration area in an effective way, featuring high air volume, low resistance and long service life, which is mainly used in HVAC systems in the clean room. The filters of this type include different efficiencies ranging from medium efficiency (F6-F9), sub-high efficiency (H10-H12) to high efficiency (H13-H14) for options. W-type filters include box type and W type, with the frames made of plastics, galvanized sheets, aluminum plates, stainless steel plates and plastics sprayed steel plates etc.



Advantages:

  • Large filter surface with compact construction
  • Low installation depth
  • High dust holding capacity
  • High air flow capacity with low pressure drop
  • High economic efficiency
  • Reduced energy operating costs
  • Without pollutant emission fully incinerable
  • High bursting pressure, dust migration impossible
  • Can be installed horizontaliy as weli as verticaily



Material and operating conditions:



External frame Aluminum Alloy/GI/Stainless steel
Sealant Polyurethane
Separator Clapboard or aluminum foil
Filter media Fiberglass /HV fiberglass / PP
Maximum operating temperature 80°C
Maximum operating humidity 100%
HEPA filter Efficiency ≥99.99%





Features:



1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.

2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats

3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.

4: The sealant around the media so that the air filter without any air leaking,

the frame can be wooden, aluminum,galvanized or stainless steel.

5: Laser to scan the each air filter one by one,

6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

95%-99.99995%@0.3um (EN1822).

7: Each air filter with test report accompany



Size and Specification:



Model Dimensions(mm)
WxHxD
Rated air
flow (m³/h)
Initial
resistance
(Pa)
Efficiency
(EN1822)
Frame Media
ZSZV-3300 592x592x292 3300 ≤120
(Media: PP))
≤220
(Media:fiber
glass)
F7-H13 Plastic/
galvanized
sheet
PP or
Fiberglass
ZSZV-1600 592x292x292 1600
ZSZV-3000 592x490x292 3000
ZSZV-1600-2 592x287x292 1600
ZSZV-800 287x287x292 800
ZSGV-3600 610x610x292 3600
ZSGV-1800 610x305x292 1800


Pictures of HEPA filter



Large Dust Holding V Bank Air Filters With Fiberglass Medium Material





Payment Term:



30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:



Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We care of your complain within 48hours.
