Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing

Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing

    • Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing
    • Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing
  • Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing

    পণ্যের বিবরণ:

    Place of Origin: Guangdong, China (Mainland)
    পরিচিতিমুলক নাম: Zhisheng
    সাক্ষ্যদান: ISO 9001/CE/ROHS
    Model Number: ASS-1400T-2

    প্রদান:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Ex Dimension: W1400xD2000xH2100MM Voltage: 380V/50HZ/3PH
    Weight: 380KG Material: SS for base
    Suitable: Three person Door: Stainless steel 304

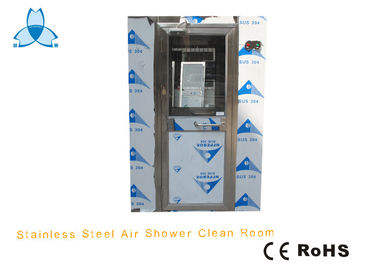

    Full SUS304 Automatic Clean Air Shower For 4 Persons With Three Sides Blowing For Hospital



    Doors: Stainless steel 304 frame with Half temper glass





    Automatic clean air shower is  an airborne pollutants barrier between clean room and the worker's gowning area and prevents



    accidental contamination due to the unwanted or improper opening of the doors.



    Air Shower is effectively removes the surface lint and particulates on the workers and their garments and completely drives them down



    to the breeze air circulating filtration system.



    Air shower is  available in a very wide variety of sizes and shapes, such as using a combination of straight, right or left angle,



    and U shapes, to provide a cleaning system to meet your specific application requirements.



    Features:



    1. Controlled by English IC control panel, electric interlocked, automatically blowing by photoelectric sensor.



    2. Showing time canb e adjusted from 0-99 seconds ont the display of control panel, it is easy to control it.



    3. Base and nozzles are used of stainless steel



    4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.



    5. Spurt wind speed: 22-25 m/s



    Applications:



    Food factory, Semiconductor Factory, Microelectronics Factory, Biological Pharmaceutical Factory, etc.



    Features:



    Product type    Full SUS304 Automatic Clean Air Shower For 4 Persons With Three Sides Blowing For Hospital
    Material for casing T=1.2 Stainless steel 304 for Outside and inside casing and base
    Material for doors Stainless steel 304 with half  glass
    Nozzles Stainles steel
    Door leaf Single leaf
    Door type Manual swing door
    Blowing way 3-side blowing,
    Control system English IC intelligent control panel with human voice
    Locks Electric mortise lock
    HEPA filter efficinecy:  H13
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 22-25m/s above
    Power supply AC220V/50HZ/1PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



    Standar size and specificaton:



    Product  Full SUS304 Automatic Clean Air Shower For 4 Persons With Three Sides Blowing For Hospital
    Model ASS-1400T-2
    External dimensions (mm) W1400*D2000*H2100MM
    Internal dimensions WxHxD(mm) W800*D1900*H1960MM
    Doors 2 sets of SS single-leaf swing door
    Door closer 2 sets (Outside)
    Lock 2sets of electric locks interlocked
    Suitable person Three person
    Nozzles 12+12+8=32 PCS(3-side blowing )
    Blower fan 2 sets
    Blow power(W) 1600W
    Weight(kg)

    Appro.380

    HEPA filter size 610x610x90mm
    HEPA filter qty 4 PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 1 PCS
    Fluorescent Lamp Philips 2x 20W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor



    Air Shower Details:

    Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides BlowingFull SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides BlowingFull SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing



    Air Shower Drawing:



    Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides BlowingFull SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides BlowingFull SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides BlowingFull SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing

    Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing





    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.


    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
