|Place of Origin:||Guangdong, China (Mainland)|
|সাক্ষ্যদান:||ISO 9001, Rohs|
|Minimum Order Quantity:||50 pieces|
|Packaging Details:||Carton and Pallet|
|Delivery Time:||about 15 days upon receipt of deposit|
|Supply Ability:||500 pieces per month|
|Size:||24x24x12 inch||Type:||Box type|
Galvanized Frame High Capacity HEPA Air Filter With Aluminum Separator, 99.99% at 0.3um
High capacity absolute filters are manufactured from the highest quality components, under demanding quality control conditions, and are certified to ensure performance in the most critical of applications.
The efficiency from 99.97% to 99.999% on 0.3 micron particles.
HEPA level air filtration in applications wherein ultra-clean air, increased airflow capacity and energy-savings are critical.
High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.
Galvanized steel frame to create a durable, dimensionally stable corrosion-resistant enclosure.
X-body frame that is assembled without the use of penetrating fasteners to ensure leak-free performance
Throughout the life of the filter.
Safe-edge tapered corrugated aluminum separators to ensure uniform airflow throughout the media pack and maintain pack stability.
The edges of the separators are the hemmed for added strength and to protect the media from damage during manufacture, shipping and installation.
Micro glass fiber media to provide efficiency to specifited performance values. The media is highly resistant to moistur in high humidity environments.
HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.
Material and operating conditions:
|External frame||GaIvanized steel|
|Filter media||HV fiberglass|
|Maximum operating temperature||80°C|
|Maximum operating humidity||100%|
|HEPA filter Efficiency||≥99.99%|
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
7: Each air filter with test report accompany
Size and Specification:
|Model||Dimensions(mm)||Rated air flow (m3/h)||Initial resistance (Pa)||Efficiency (MPPS)||Class (EN1822)|
|ZS-GB320||320x320x220||400||≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP)||95% -99.995%||F9-H14|

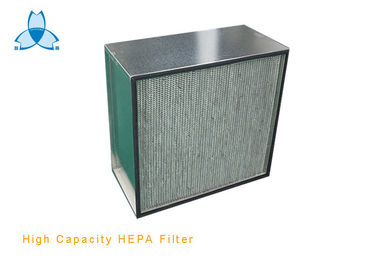

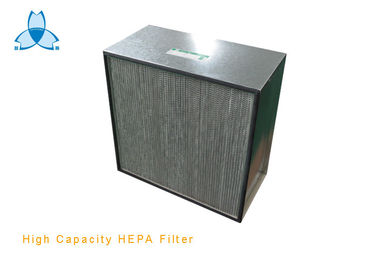

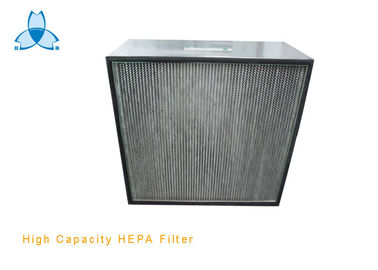

Pictures of HEPA filter
40% prepayment by T/T at order, the balance of payment before shipment.
Carton and Plywood Case
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
