|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||10-15 days after receive prepayment|
|Payment Terms:||Western Union, T/T|
|Supply Ability:||20 sets per month|
|Frame:||Aluminum or stainless steel||Material:||PVC curtain on the mainbody|
|Purification Grade:||Class 1000||FFU size:||1170x570x230mm|
|FFU material:||Galvanzied for casing|

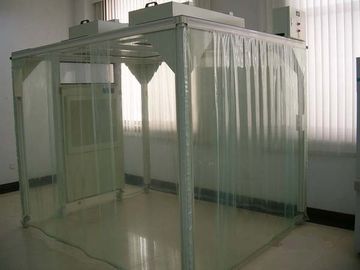

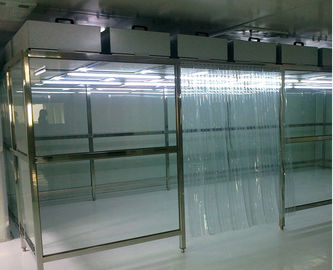

Softwall Modular Clean Room/ Clean Booth
Softwall Modular Cleanroom/Clean Booth provide an economical, versatile solution to clean manufacturing requirements in semiconductor, medical device, and many other industries.
Portable, expandable, and easy to assemble/disassemble, these cleanrooms are also available on an accelerated delivery program to meet your tight production schedule.
Clean Booth is cost efficient alternative to a clean room. ISO 5 cleanliness is achievable with this versatile equipment.
Flexible and economical, it may be easily relocated or expanded as required.
The aluminum/stainless steel framework offers a stable structure yet requires minimal construction time.
Frame of clean booth: Aluminum alloy or stainless steel
Body of clean booth: PVC anti-static curtains / Plexiglass / Acrylic sheet
Shell of FFU material: Cold rolled steel with powder coated, Aluminum coated zinc platet,or stainless steel 201/304
1).Clean booth can offer the part of high clean environment ,can be installed on the top of the place
that need to clean.The air that come out from the FFU will be filtered by the pre filter and HEPA filter ,then the
clean air enter into the work zone vertically to insure the purification requirement
2).the noise less than 52dBA,the air velocity is 0.35-0.6m/s
3). the dimension of the clean booth ,customizes design is available
4).it can be used by single and also can be connected to clean area in strip
5). purification rank : 100 class,1000 class or 10000class
FFU Size and Specification:
|Size for Casing(mm)||610x610x240||915x610x240||1170x570x240||1220x610x240|
|Material||Cold rolled steel with powder coated, Aluminum coated zinc plate,or stainless steel 201/304|
|Rated Air flow(m3/h)||1000||1500||1800||2000|
|Air velocity||0.35/0.48/0.6 m/s|
|Hepa fiter||Size (mm)||610x610x69||915x610x69||1170x570x69||1220x610x69|
|Fan (motor)||Voltage||AC 220-240V/50Hz|
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
40% prepayment by T/T at order, the balance of payment before shipment.
