|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||100 sets per month|
|Frame:||Aluminum alloy||Wall:||PVC curtian|

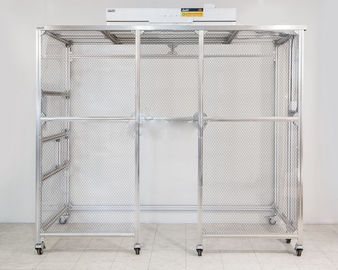

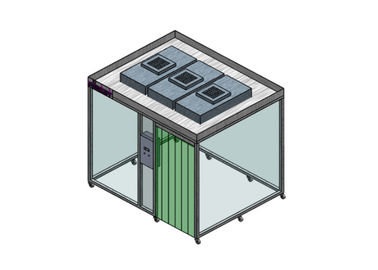

Soft Wall Modular Clean Room/ Clean Booth With Fan Filter Unit
Soft wall Modular Clean rooms provide an economical, versatile solution to clean manufacturing requirements in semiconductor, medical device,and many other industries.
Portable,expandable,and easy to assemble/disassemble,
these clean rooms are also available on an accelerated delivery program to meet your tight production schedule!
A. The clean room can be quickly installed in the existing ordinary environment, and improve the working environment.
B. Low cost, high speed and easy upgrading.
C. The structure is solid and can stand independently and freely.
D. Cleanliness: from Class 100 to Class 100,000
Bio-pharmaceuticals, medical treatment, food, LCM, camera module, touch screen, optical module, FILM, and other production or experimental environment.
|Descriptation||Soft wall modular clean room|
|Cleanliness||Class 100 to Class 100,000|
|Dimension (LXWXH)||Designed as per customer’s requirements|
|FFU||Dimension||2X2, 2X4, 4X4 optional|
|Casing||Stainless steel, aluminum alloy|
|Filter||Mini pleat HEPA filter/ULPA filter optional|
|Material of support frame||Aluminum alloy / stainless steel|
|Material of wall||Anti-static PVC thin film or soft curtain|
|Material of Ceiling||Aluminium-plastic panel|
|Description||Soft wall modular clean room|
|Lighting||Clean lighting||LED/T5 optional|
|Air conditioner||Design as per requirements||Constant temperature air conditioning /constant temperature and constant humidity air-conditioner; optional|
|Other clean room facilities||Carry out design and installation as per customer requirements|
Note: Besides specification above, we can customize as required.
Size of Soft Wall Clean Room
|Common specifications on module clean room|
|Size (mm)||Quantity of installed ceiling||Number of filter of level 209 as per the Federal Reserve standard|

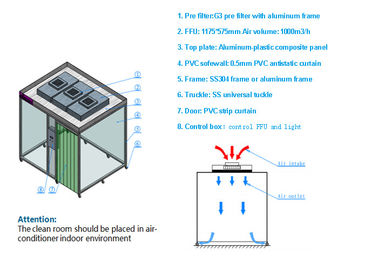

Details of All Parts
Structured frame: The frame of soft wall clean booth has two selections: SUS stainless steel and aluminum alloy;
The stainless steel can resist corrosion and has high structural strength; aluminium alloy structure leads to easy assembly, standard accessories and good air tightness;
Mainbody Ceiling:Aluminium-plastic panel is light in weight, easy to install, and has multiple colors for selection;
Top Wall: Transparent anti-static PVC is low in price. The anti-static PVC sheet may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber. It is applicable to modular clean room that requires high demand for cleanliness and static.
FFU: Excellent energy-saving draught fan will be adopted, whose noise and energy consumption are on the low side. Meanwhile, the draught fan can be designated by customers, such as EBM of Germany. The casing is made of powder coated steel, galvanized aluminum steel,, stainless steel.
Control system: The control system has been developed by ZHISHENG on its own. FFU is controlled in group or is under centralized control of PLC. It can regulate the wind speed, differential pressure, temperature and humidity of EFU (applicable to system with air conditioner).
Other optional accessories:
Fast rolling door
