পণ্যের বিবরণ:
|
| Frame: | Common sheet | Media: | Non-woven fabric |
|---|---|---|---|
| Size: | 595x595x21mm | Class: | G3/G4 |
| Color: | White | ||
| লক্ষণীয় করা: | pre filter air filter,air purifier pre filter |
||

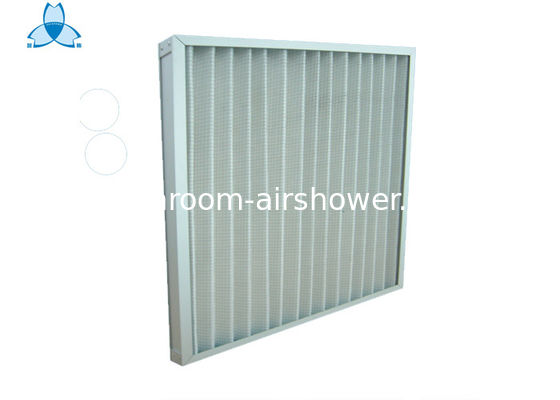

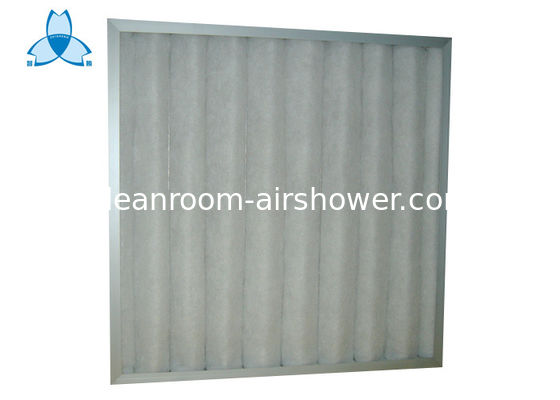

Aluminum Alloy Primary Efficiency corrugated - Type Pre Air Filter
Description:
They are manufactured with non-woven and glass fiber , etc. as the filtering materials .they wedge-shaped folds are used to enlarge the filtering area . They can also be manufactured to be a platestructure clamped with wire netting or supported with an inside metal framework and equipped with a metal outside frame . they have the characteristics of low resistance , long service life , can be washed , economy and durability , etc.
Application :
They are generally used in the pre-filtration of the central air conditionings and centralized ventilation systems and the pre-filtration of the gas turbines and the air compressors.
Structure :
The inside structures of the filter are generally divided into keel framework and frame include hardihood and uniform distribution of filtering materials , but its manufacture takes time and energy . They characteristics of the frame framework include convenience in the exchange of filter materials and time saving for its manufacture , but its strength is slightly poorer than that of the keel framework
Feature:
1) High dust-contain capacity
2) Large filtering area
3) Cheap price
4) conenvient to replace media material
Specification:
| Product Details | Type | Panel filter, Pleated filter | |
| Feature | Large dust capacity,low drop | ||
| Frame | Cardboard/aluiminum/galvanzied | ||
| Media | Synthetic fiber | ||
| Size | Standard or Customerized | ||
| Metal gauze | Galvanzied/aluminum net | ||
| Efficiency | 30-50% (merv 7-merv 9) | ||
| Class | G3,G4 or F5 | ||
Size and specification:
| Model | Outside dimensions(mm) | Thickness(mm) | Rated air flow(m3/h) | Efficiency | Material | |
| ZS-CBA-1 | 595x595 | 21/46mm | 2000-3200 | G3 | Media | Non-woven fabric |
| ZS-CBA-2 | 595x295 | 21/46mm | 1000-1500 | Frame | Aluminum alloy / zinc galvanized | |
| ZS-CBA-3 | 595X495 | 21/46mm | 1500-2500 | Frame work | Common steel wire/ stainless steel wire | |
| ZS-CBA-4 | 900x495 | 21/46mm | 3000-5000 | Wire mesh | Galvanized Steel Wire | |

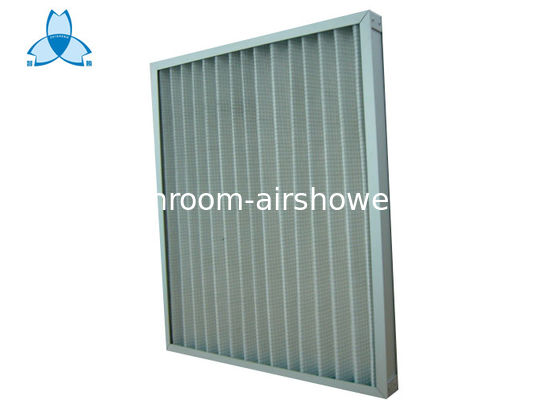

Picture :
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
