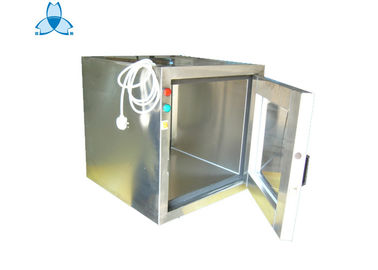

Clean Room Small Area Air Shower Pass Through / Box with UV Lamp

Pass box is a wall mounted pass box used for controlling cross contamination between two zones.

The pass box come with a mechanical or electrical interlock system so that only one door can be opened at a time.

The pass box are available in powder coated steel, 304 stainless steel construction and 316 stainless steel construction.

External size: W700xD600xH700MM

Internal size: W500xD520xH600MM

Material: stainless steel 304

Lock system: Machanical interlocked

With UV lamp

Standard Design Features:

Optional Design Features:

Construction Options:

Optional Features

• HEPA filters
• Fan filter units
• Electric interlock system
• Support brackets
• Electro-polished finish for stainless steel pass box
• Double wall construction (painted and stainless steel)
• 304 Stainless Steel door frames with 1/4" thick clear tempered glass
• Stainless steel/spring loaded door latch
• UV light

Application

It mainly applied to the goods transimission between the clean and non-clean areas, preventing the

outside dust particles from coming into the clean area due to air circulation.

The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.

Standard size:

we can offer special size and requirement as per our clients.

Drawing:

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Why you choose ZHISHENG Company ?

Professional service:

• Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.
