পণ্যের বিবরণ:
|
| Face size: | 24"x24” | Material: | Aluminum Alloy |
|---|---|---|---|
| Surface finish: | Powder coated | Color: | RAL9016 |
| Type: | 4-way ceiling diffuser | ||
| লক্ষণীয় করা: | ceiling vent diffuser,hvac ceiling diffuser |
||

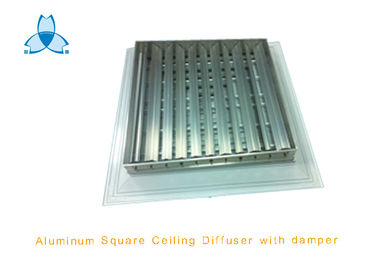

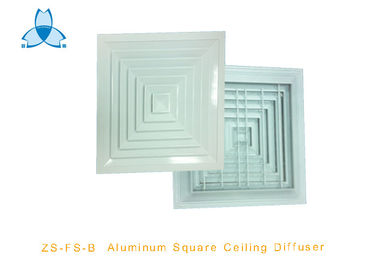

Aluminum 4 Way RAL9016 Square Air Diffuser with Damper For Air Conditioning
Construction:
Frame:High quality extruded aluminum alloy
Core:High quality extruded aluminum ally profile
Material: thickness:0.8mm,1.0mm or 1.2mm Aluminum
Color for Diffuser : RAL9016 or RAL9010
Surface finish: powder coated/Anodized.
Face size= 24" x 24 "
Neck size= 18" x 18"
Border width:32mm
Height:50mm
Features:
1. Excllent appearance , fit for supply airflow
2. The multiplayer cone divided the air into many layers of swift puffs, quickly mixing the inlet air and interior together
3.Louvered type core is fixed to frame with aluminum pins loaded with steel springs.Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper
adjustment.
4. Dampers can be installed so as to adjust airflow
Application:
It is used for supply and extract air applications for bathrooms kitchens and external walls of the buildings. It generally are widely used for air outlet of air conditioner.
Packing: Carton
Payment: 30% prepayment by T/T before shipment, the balance of payment before shipment.
