পূর্ব এয়ার ফিল্টার
Created with Pixso. Custom Size Industrial Air Filters Resistance 30 Pa , 2000 M3/H Rated Air Flow

Custom Size Industrial Air Filters Resistance 30 Pa , 2000 M3/H Rated Air Flow

ব্র্যান্ড নাম: Zhisheng
মডেল নম্বর: ZS-CB-2000
MOQ: 100 pieces
বিতরণ সময়: about 15 days upon receipt of deposit
বিস্তারিত তথ্য
Place of Origin:
Guangdong, China (Mainland)
সাক্ষ্যদান:
ISO9001, Rohs
Frame:
paper
Media:
non-wowen fabric
Size:
484*484*44mm
Efficiency:
G3
Rated air flow:
2000 m3/h
Color:
Blue
Packaging Details:
plywood case
Supply Ability:
1000 pieces
বিশেষভাবে তুলে ধরা:

air filter pre filter

,

pre filter air filter

পণ্যের বর্ণনা



Customer's Size Initial Resistance 30 Pa Pre Industrial Air Filter



Capacity:



Media: Polyester

Frame: Paper, aluminum or galvanized

Protect mesh: Aluminum net or stainless steel net

Face net:Spot mesh,Expanded mesh

Large filter area

Low initial resistance

Large dust holding capacity

Economical and practical

Efficiency:G3/G4 (EN779)

Recommended final Pressure drop:200Pa

Different sizes and specifications are available

Operating conditions:

Temperature:70

Humidity:90%RH

Applications:

Used as Prefilters in commercial and industial central air conditioning systems


Specification:



Product Details Type Panel filter, Pleated filter
Feature Large dust capacity,low drop
Frame Cardboard/aluiminum/galvanzied
Media Synthetic fiber
Size Standard or Customerized
Metal gauze Galvanzied/aluminum net
Efficiency 30-50% (merv 7-merv 9)
Class G3,G4 or F5


Size and specification:


Model Outside
dimensions(mm)
Initial
resistance(Pa)
Rated air
flow(m3/h)
Efficiency(%) Material
ZS-CB-3200 595x595x46 30 3200 30%(G3) Media :Synthetic fiber
ZS-CB-1600 595x295x46 1600 Frame :cardboard
ZS-CB-2000 484x484x44 2000 Metal gauze:Galvanized Steel/Aluminum alloy

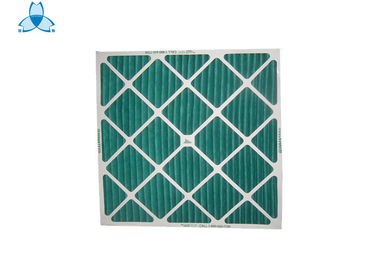

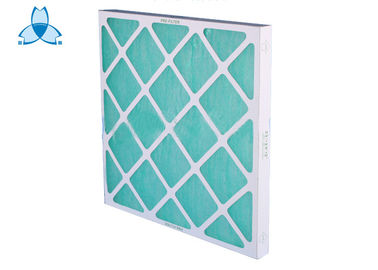

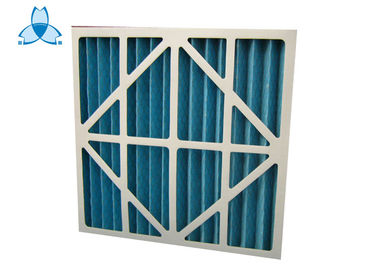

Picture:



Custom Size Industrial Air Filters Resistance 30 Pa  , 2000 M3/H Rated Air Flow 0







Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:

Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
