ভি ব্যাংক ফিল্টার
Created with Pixso. High Performance H13 V Bank Filter , Portable Air Filter For Hospital Operating Room

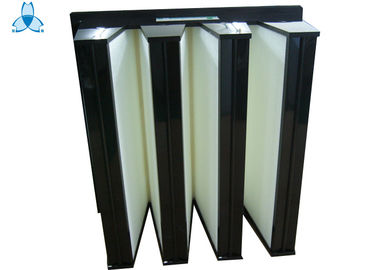

High Performance H13 V Bank Filter , Portable Air Filter For Hospital Operating Room

ব্র্যান্ড নাম: Zhisheng
মডেল নম্বর: ZSZV-3300
MOQ: 50 pieces
বিতরণ সময়: about 15 days upon receipt of deposit
বিস্তারিত তথ্য
Place of Origin:
Guangdong, China (Mainland)
সাক্ষ্যদান:
ISO9001, Rohs
Frame:
Plastic
Media:
PP
Size:
24x24x12
Class:
F9
Filtration Grade:
Hepa Filter
Application:
Air Conditioning System
Packaging Details:
plywood case
Supply Ability:
500 pieces
বিশেষভাবে তুলে ধরা:

V Bank Air Filters

,

Compact Air Filter

পণ্যের বর্ণনা

High Performance H13 V- Bank used for super-efficient filtration system

Description:
  • Features: High efficiency, low resistance and large air flow.
  • Suitable for the terminal filtration of the air conditioning system and the air cleaning facility needing large air flow;
  • Large filtering area to make sure the low resistance on the large airflow side;
  • Either standard galvanized steel frame or stainless steel frame;
  • Sealant: Polyurethane;
  • Sealed material: Molding plastic polyurethane or neoprene;
  • Max.operating temperature: 80 degree centigrade;
  • One-by-one test;
  • Filtering Efficiency Grade: H13, H14(EN 1822);
Advantages of the product:

1.High dust holding
2.Low initial pressure drop
3.Good raw material, competitive price
4.Leak test one by one before delivery
5.Fast delivery
6.Size can be customized


Features:



Product type Plastic frame compact filter for cleanroom
Efficiency F6-F9 (EN799)
Media Mircro glass fiber or PP
Separator hot-melt
Frame ABS plastic
Sealant Ployurethane
Initial pressure drop 170 pa (0.68 WG)
Final pressure drop 600 pa
Operating temperature 80 ºC



Common applications:



It is applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room, and so on.

It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system



SIZE AND SPECIFICATION



Model Dimensions(mm) WxHxD Rated air flow (m³/h) Initial resistance (Pa) Efficiency (EN1822) Frame Media
ZSZV-3300 592x592x292 3300

≤120 (Media: PP))

≤220 (Media:fiberglass)

F7-H13 Plastic/ galvanized sheet

PP or

Fiberglass

ZSZV-1600 592x292x292 1600
ZSZV-3000 592x490x292 3000
ZSZV-1600-2 592x287x292 1600
ZSZV-800 287x287x292 800
ZSGV-3600 610x610x292 3600
ZSGV-1800 610x305x292 1800





High Performance H13 V Bank Filter , Portable Air Filter For Hospital Operating Room 0



Payment Term:



30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:



Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We care of your complain within 48hours.
