Anodized Aluminum Frame Mini Pleat HEPA Filter For Clean Room / HVAC Applications

Anodized Aluminum Frame Mini Pleat HEPA Filter For Clean Room / HVAC Applications

MOQ: 50 pieces
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
payment method: T/T, Western Union
Supply Capacity: 500 pieces per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
পরিচিতিমুলক নাম
Zhisheng
সাক্ষ্যদান
ISO 9001, Rohs
Model Number
ZS-GW915
Frame:
Anodized Aluminum
Media:
Fiberglass
Size:
915*610*69mm
Type:
Panel type
Separator:
Hot glue
Efficiency:
99.99%
Minimum Order Quantity:
50 pieces
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Payment Terms:
T/T, Western Union
Supply Ability:
500 pieces per month
High Light:

custom air filters

,

air purifier washable hepa filter

Product Description


Anodized Aluminum Frame,Mini Pleat HEPA Filter For Clean Room and HVAC Applications


Mini pleat HEPA filter class H10 to H14, anodized aluminum profile frames, plastic frames, endless foamed sealing, laminar flow protection grid.



Microfine fiber-glass paper is pleated fully automatically to produce filter packs of different sizes.



The individual folds are spaced by means of fused plastic threads and simultaneously lend the filter packs the required stability.



Fields of application up to max 80°c and max relative humidity 100%.



Frame type gasket ultrafil air systems first in clean air aluminum! Gi / CRCA anodized / ss304 box/flange polyethylene / equivalent gi powder coated, aluminum anodized / st. Steel, box /flange type.



Epoxy based adhesive used for leak proof joint between media and casing.



Sponge rubber / polyurethane neoprene gasket provided for sealing of filter on its mounting frame.



Recommended for operating temperature : up to 120°c.

Recommended for operating humidity : up to 100% rh

Recommended for minimum operating efficiency of 99. 97% down to particle size of 0. 3 microns



Material and operating conditions:



External frame  Anodized Aluminum
Sealant Polyurethane
Separator hot-melt
Filter media PP, PP/PET, fiberglass or HV fiberglass
Maximum operating temperature 80°C
Maximum operating humidity 80%
HEPA filter Efficiency ≥95%-99.995%



Features:

1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
95%-99.99995%@0.3um (EN1822).
7: Each air filter with test report accompany

Size and Specification:



Model Dimensions(mm)

Rated air flow

(m³/h)

Initial resistance

(Pa)

Efficiency
(MPPS)

ZS-GW305-1 305x305x50 180 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW305-2 305x305x69 250 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW610-1 610x610x50 700 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW610-2 610x610x69 1000 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-1 915x610x50 1100 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-2 915x610x69 1500 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW1220 1220x610x69 2000 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW305-2 305x305x80 300 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW610-3 610x610x80 1300 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-3 915x610x80 1900 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW915-3 915x610x90 1900 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)

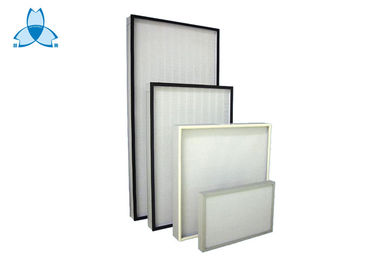

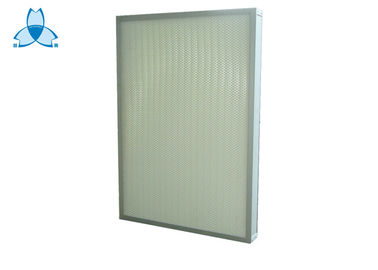

Pictures of HEPA filter

Anodized Aluminum Frame Mini Pleat HEPA Filter For Clean Room / HVAC Applications 0Anodized Aluminum Frame Mini Pleat HEPA Filter For Clean Room / HVAC Applications 1


Payment Term:

40% prepayment by T/T at order, the balance of payment before shipment.

Packing: Carton and Pallet



Delivery time:

Production period:15-20days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
• We care of your complain within 48hours.
